Grip-Engineering ARCHIVE	G17 Adapter Back
Adapter overview.pdf G17 Datasheet.pdf TH187 THS438 THS486 THS464 THS626 THS637
	TH187 Male pin with counter nut female hole Zapfen mit Außengewinde zum Verspannen Adapterbohrung mit einer oder zwei Querbohrungen more
	THS438-158-M6 Male thread with counter nut female thread Zapfen mit Mutter zum Kontern Innengewinde more
	THS464-158-M12-L40 Adapter Male 2 counter nuts Thread male more
	THS220-8-M6 Male Adapter Female Thread more
	THS486 Female Pin hole Adapterbohrung - Inner thread Innengewinde more
	THS892-30-M16 Adapterbohrung 30mm - Außengewinde M16 more

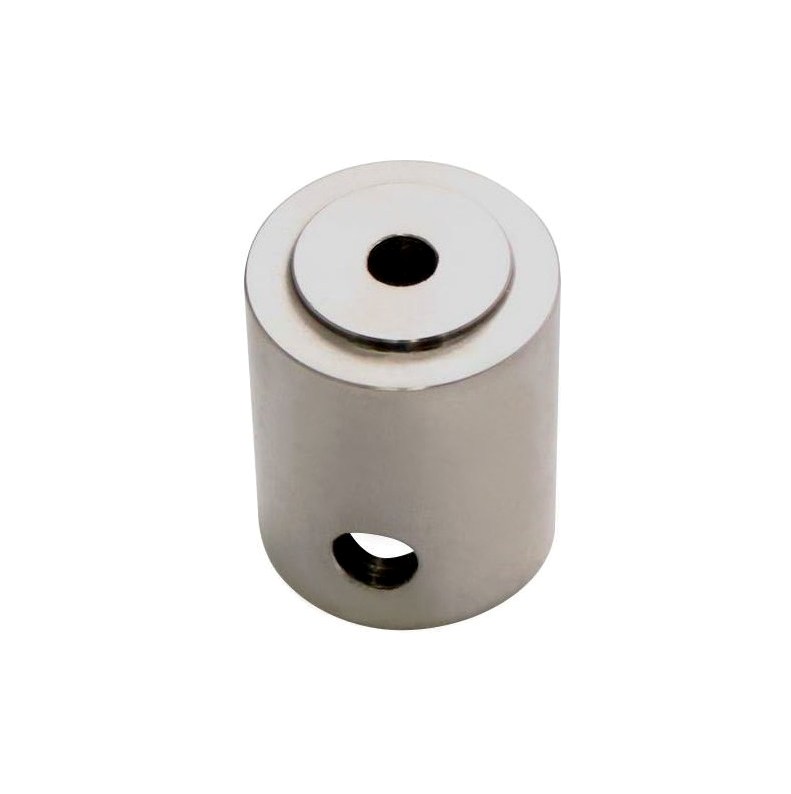

	THS637-20-Km6 Adapter feamle with a hole to fix a capscrew Adapter weiblich mit Kopfsenkung für Schraube DIN912 more
	THS636-16-Km5 Adapter male with a hole to fix a screw Adapter männlich mit Kopfsenkung für Schraube DIN912
	THS636-16-Km5-VA4 Stainless steel adapter, Af16 mm, M5 inner thread
	THS626-158-317 2 male pins with 2 nuts 2 männliche Anschschlußzapfen mit Kontermuttern more
	THS531-3014-318 Adapter female – female Adapter weiblich - weiblich more
	THS658-M24-M36 Adapter male thread female thread more
	THS814-M14-M6 Adapter male thread – male thread more
	TH239 Locking pins Absteckstifte more
	THS646-36-40x8 Flange Adapter Female Flanschadapter weiblich more
	THS628-5025-8xKm12TK120 Flange Adapter male more
	THS892-318-M12 Female Adapter – male thread more
	THS950-M33x2-M30x2 Adapter with 2 female threads
	THS988-158-D20x60 Adapter male with pin hole male to fix in jaws more
	THS978_M60x1.5-12x16.4TK84 Male thread flange
	THS624 Flange female thread
Adapter für Thermokammer	Adapter for chamber
	THS521-158-159-D21-L200-P pullrod long adapter male 15.8mm female 15.9 mm diameter 21mm distance pin to pin 200mm pneumatic concetors more
	THS521-Af40-Am40-L180 Pull rod for temperature chambers, Couplings female (lower) and male (upper) 40/16, length between holes 180 mm

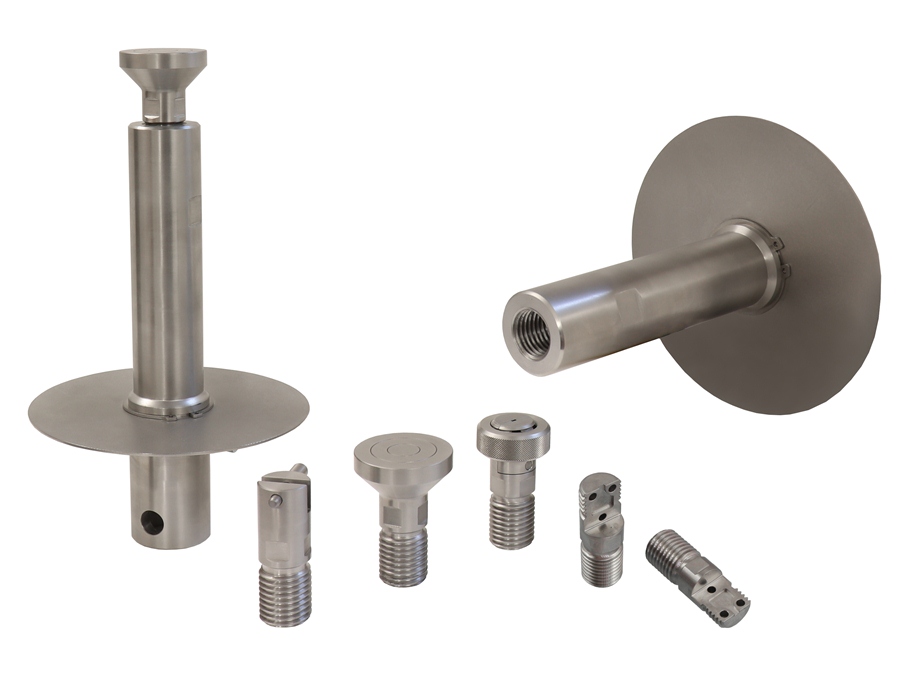

	THS1141 high temperature pullrods and grips up to 800°  1000°  1100° 1200°C  1400°C and more  made of high temperature steel and Wolfram   more
Sonderadapter	Special Adapter

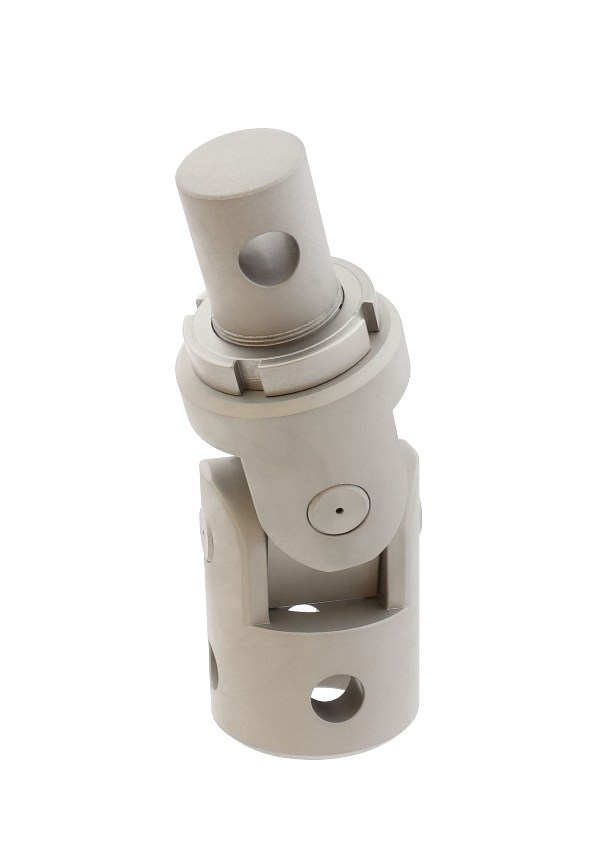

	THS327 Kardan Zapfen 15.8 mm Bohrung 15.9 mm more
	THS317-158-159 turnable Adapter with ball bearings Drehadapter mit Axialkugellager Zapfen 15.8 mm Bohrung 15.9 mm more
	THS665-158-159-L500 Chain adapter Male 15.8/8 mm Female 15.9/8 mm Length 500 mm Kettenadapter 20 kN
	THS572 Winkeleinstellbare Adapter ±45°, +60, +90° Zapfen 15.8 mm Bohrung 15.9 mm more
	THS350-50-50-8 Adapter to calibrate tensile tester with a second load cell
	THS91 MPA Adapter mit Pfanne more
	THS785-40-M72x3-L200 Male threaded bold with Spiral washers Verspannscheiben
Adapterkürzel yy	nomenclature short forms yy
Weiblich / female Af159 = Adapter female 15.9H7 = 15.900…15.918 59 = 5.9/2.6 mm 8 = 8/3 10 = 10. 126 = 12.6/3.9 14 = 14/6 155 = 15/5 1506 = 15/6 159 = 15.9/8 = 5/8" häufigster Adapter 20kN 16 = 16/6.5 18 = 18/8 19197=19,1/9.7 6/8" 20 = 20/8 20kN 25 = 25/10	255 = 25.5 / 12.7 30 = 30/12 50kN 318 = 31.8/12.8 10/8" 50kN 32 = 32/16.3 Te 36 = 36/18 50kN 38 = 38/16 50kN Ga 40 = 40/16 100kN 50 = 50/24 6025 = 60/25 (25/53) 250kN 6030 = 60/30 (35/72) 250kN 64 = 64 / 30 300 kN 70 = 70/35 (35/72) 300kN
Männlich / Male Am15.8 Adapter male 15.8 f6 = 15.784…15.773 m8 = 8/3 500N m119 = 11.9/6 10kN m15865 = 15.8/6.5 (MTS) m158 = 15.8/8 5/8" 20kN m1660 = 16/6 10kN m1665 = 16/6.5 10 kN m19 =19/9.7 6/8" 19.0/9.7/12.7/28.5	m20 20/8 m2014 Zap fen 20/14 o Querbohrung MTS m22 = 22 Diameter mitt Nut MTS m317 10/8" (Instron) m35 = 35/13 / 20/40 m40 = 40/16 m45 = 45/20 35vR MTS m50 = 50/24
